MXOne High Performance Extinguishing Turbine
Extinguishing Turbine MXONE
360º TURBINE, THE NEW GENERATION OF FIRE PROTECTION SYSTEMS
INTRODUCTION
The high-performance fire turbine Minimax MXOne represents a new generation of stationary systems fire protection.
This unique system has a 360° operating range and allows highly precise and targeted use of water mist from a large and safe distance. At full stream, it achieves a discharge range of up to 262 feet.
PEFIPRESA, together with MINIMAX, installs and maintains these systems, offering the best solution for this type of risk.

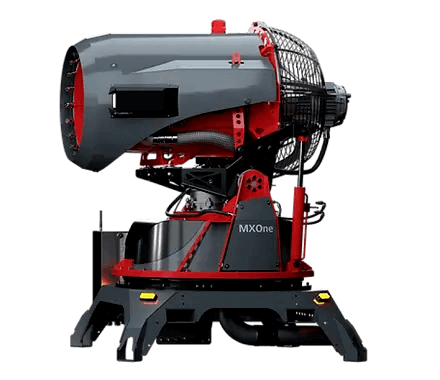

CHARACTERISTICS OF THE 360º TURBINE
Nozzle ring
Max flow rate 4,000 l/min
Configurations: nozzle head (water mist) or jet pipe (spray jet)
Operating pressure 58 to 232 psi
Rotation angle 360°
LED lightning (2 x 3,000 lumen)
Weight 2,083 lbs
PERFORMANCE

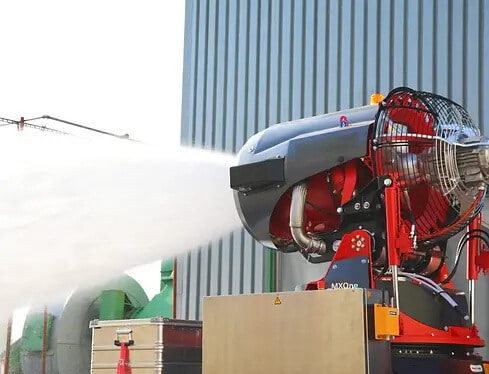

Efficient fire protection: from water mist to full jet mode. An ideal solution for many application areas.
- The spray mode during operation can be adapted to the fire scenario and fire load.
- A gentle supply of extinguishing water prevents burning material from spreading.
- The water mist mode reduces the amount of water needed as a result of the cooling and quenching effect. Low dispersion loss and high reach even with a flat adjustment angle.
MOBILITY
Quick to raise and tilt with permanent positioning control with 360° rotation for maximum flexibility.
- Rotation range means full coverage.
- Fast rotation and precise angle adjustment.
- Infinitely variable navigation: tilt angle from -19° to +43°.
- Position sensors indicate the exact alignment of the turbine on the control panel.
ALTERNATIVE INSTALLATIONS
The MXOne can be configured in several ways. While the MXOne can be purchased as a stand-alone unit to integrate into your facility, we also provide some pre-configured applications.
Our mobile and sliding units can include an onboard power source (36 KW diesel generator) with the necessary piping manifold to accommodate standard fire department connections.
Both options can also be equipped with water-powered foam metering pumps to make foaming easier with the MXOne.

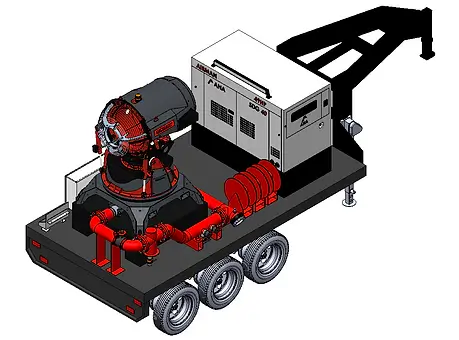

Mobile installation with diesel generator on board
The MXOne mounts to a triple axle trailer and includes a 36 KW diesel generator, a water inlet header with (2) 5″ Storz connections and (2) 2-1/2″ hose connections, and (150′) of 5″ hose on (3) reels.
The trailer can be configured for use with water or foam/water. The trailer can be configured with a retractable tarp to protect the MXOne from adverse conditions or travel.

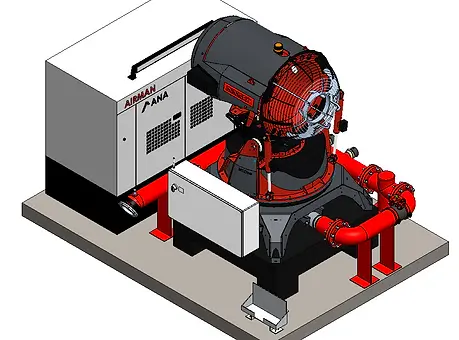

Fixed unit with diesel generator on board
The MXOne is tile mounted and includes a 36 KW diesel generator, a water inlet header with (2) 5″ Storz connections and (2) 2-1/2″ hose connections.
The skid can be configured with a retractable tarp to protect the MXOne from adverse conditions.
AREAS OF APPLICATION OF THE MXONE TURBINE
The following areas may be conducive to installing the MXOne turbine. These are usually systems that will be used in harsh industrial environments: resilience, reliability and efficiency.
MXOne fully meets these requirements and, despite its robust design, is easy to operate and requires little maintenance.
The extinguishing system can be used in areas with an ambient temperature of -15° to 55° C.
- Wood processing industries.
- Recycling companies.
- Chemical plants and refineries.
- External and internal storage areas.
- Airplane hangars or heliports.
- Tunnels.
- Tanks with flammable liquids or bulk materials, in combination with foaming agents.
- Protection and cooling of adjacent areas.
- Material loading and unloading stations.
- Substations and transformers.
